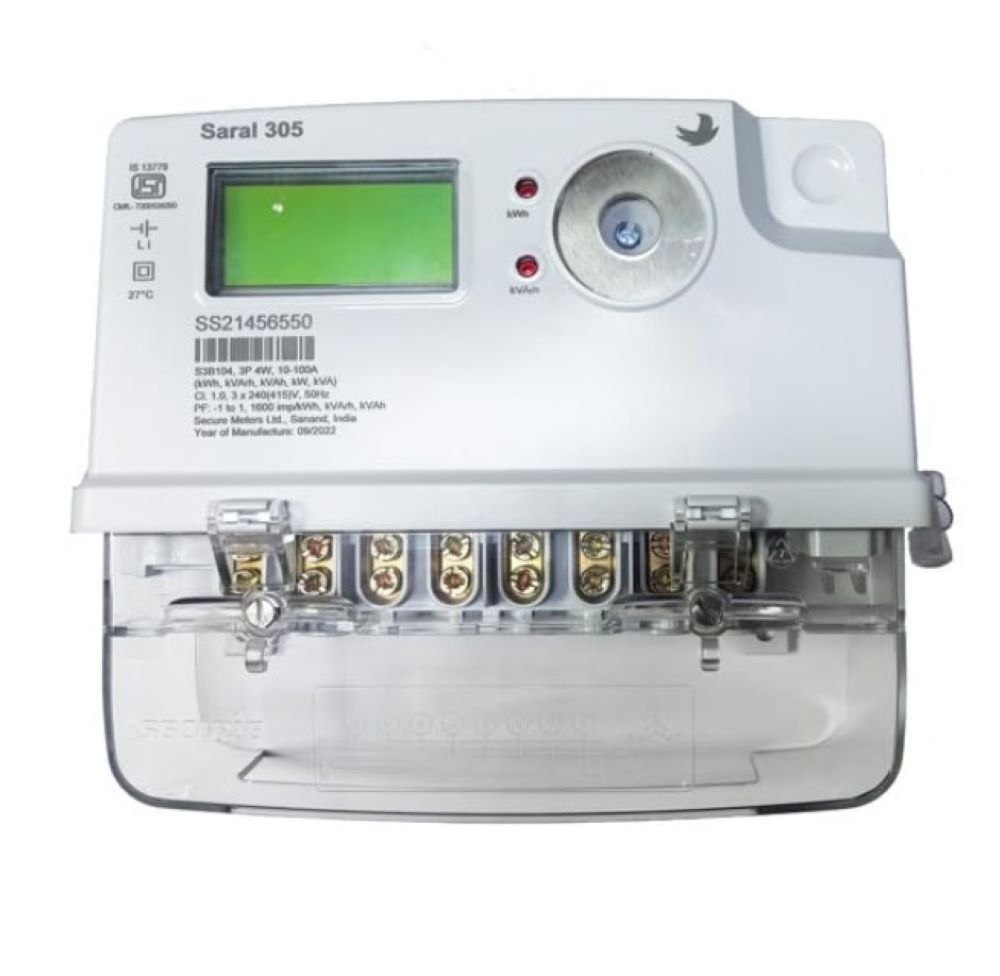

Secure Net Meter 3 Phase Saral 305/Solar accounting meter/Bi-directional meter

Technical specifications Electrical Connection type Three phase, four wire, direct connected Rated voltage 3 x 230/240 V, ± 10% Current range 10 A Ibasic, 100 A Imax Accuracy Class 1.0 Frequency 50 Hz, ± 5% Metrology LEDs Two LED for active and reactive/ apparent energy Burden Voltage circuit < 1W/1.5 VA per phase Current circuit < 0.1 VA per phase Standards Compliance IS 13779, IS 15959 ICS DLMS compliance Mechanical Dimension W x H x D 190 mm x 158 mm x 78 mm (approx.) Weight 900 grams (approx.) Enclosure material Meter case, terminal block Engineering-plastic Sealing Break to open enclosure, additional sealing provision between meter body and terminal block Environmental Ingress protection IP 54 Insulation class Protective class II Operating temperature -10 °C to +60 °C Storage temperature -25 °C to +70 °C Humidity 95%, non-condensing Features Tariff rate registers Up to 8 rate registers, for configured energy channels Maximum demand Up to 2 types, configurable across 8 registers Load survey Up to 90 days profiling for 10 parameters with 30 min IP Communication options Optical port for local communications and additional RS232 port (RJ45 connector) for remote communication Enables wireless meter data collection over mobile application through short range 2.4GHz RF communication (optional) Specifcations are subject to chan

Brand: Secure
